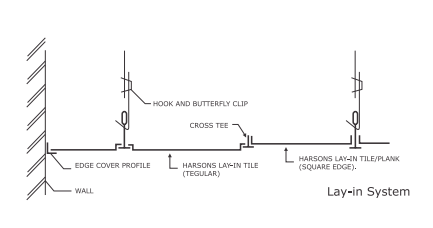

Lay-in-System
Suspension system is standard 15/24 mm table exposed metal grid. Grid features 38mm high main runners and cross tees, roll formed from galvanised steel to BS 2989 Z-18 zinc coating.
Lay-in-System
The main runners feature Mayonet ends and the cross tees stab ends for quick and simple coupling. The runners are pre-slotted to construct a variety of layouts. The main and cross runners and provided with a coil-coated steel capping on the exposed table in an off-white colour.
The grid is suspended from the roof with GI wire rod and quick adjustment suspension hangers along the runners. The grid system is designed to satisfy ASTM C635 intermediate duty loading and deflection criteria. This system is only suitable for interior use.
Edge Cover Profile
Tiles/Planks are trimmed along the wall perimeter by means of a 23X23mm roll-formed steel or aluminum edge cover profile.
Paint Finish
Steel tiles/planks are finished on exposed side with backing coat on rear surface (nominal 5 microns), or with a 50 micron eproxy polyester powder coating on exposed surface.
Aluminium tiles/planks are finished on exposed side with 20 micron polyester coil coating over primer in approve and backing coat on rear surface (nominal 5 microns), or with a 50 micron epoxy polyester powder coating on exposed surface. Wall angles are finished with 50 micron epoxy polyester powder coating paint.
